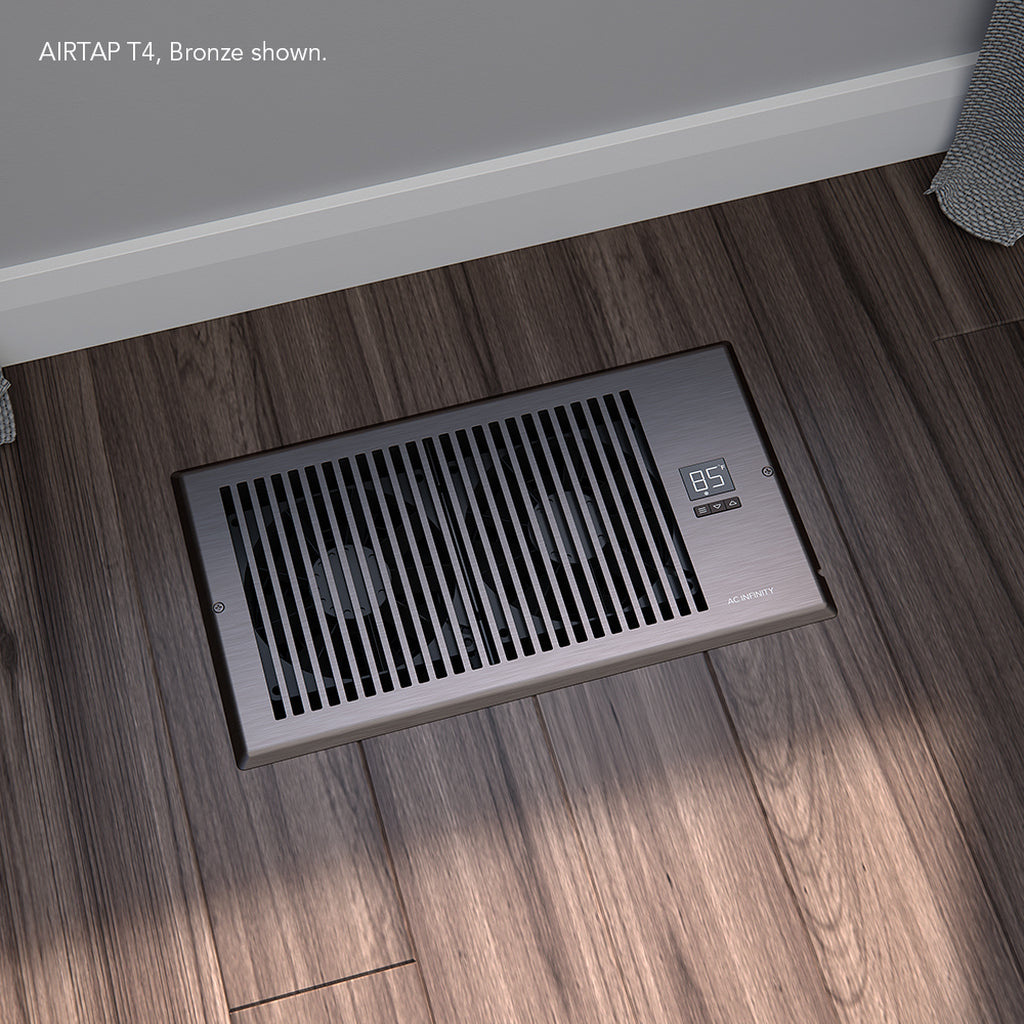

AIRTAP T4, QUIET REGISTER BOOSTER FAN SYSTEM, BROWN BRONZE, FOR 4” X 10” REGISTERS

Product Description :

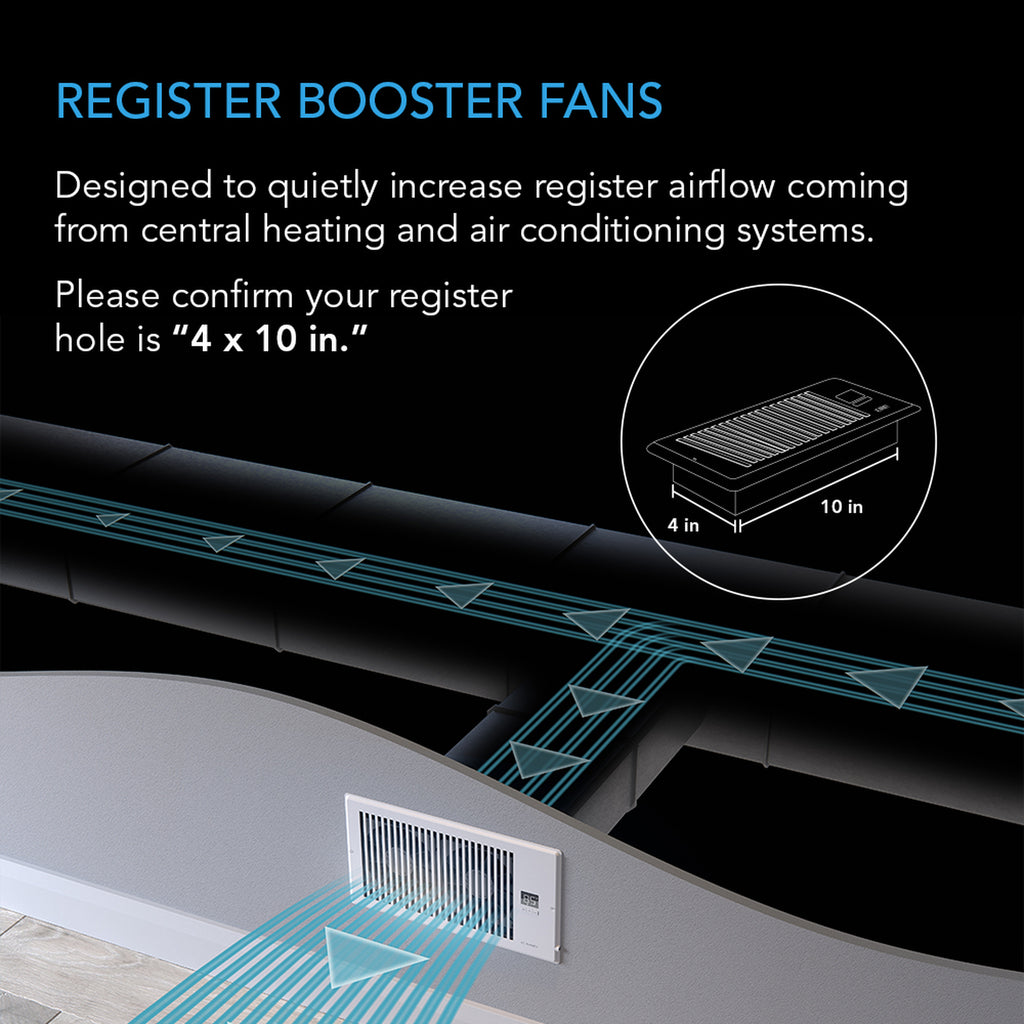

  • A quiet fan system designed for improving wall and floor register airflow from HVAC systems.
  • Programmable LCD controller with heating and cooling thermostat, and automated fan speeds.
  • Premium anodized aluminum frame with CNC-machined detailing and a brown bronze finish.
  • Features stator-blade fans which can deliver strong airflow from high static-pressure ductwork.
  • Fits ONLY 4 x 10 in. Registers | Airflow: 120 CFM | Noise: 18 Dba | Includes Wall Adapter

Product Info :

   Product and Mounting Dimensions - Fan Unit
   Total Dimensions    11.54 x 5.51 x 1.96 in. (29.3 x 14.0 x 5.0 cm)
   Backside Enclosure Dimensions    9.72 x 3.93 in. (24.7 x 10.0 cm)
   Hole to Hole Distance    10.55 (26.8 cm)
   Screw Hole Size    Ø 0.197 in (Ø 0.4 cm)
   Cord Length    144 in. (12 feet)
   Product Performance and Technical Specs
   Fits Register Sizes    4 x 10 in.
   Design    Bronze
   Total Airflow    120 CFM
   Total Noise    18 dBA
   Static Pressure    6.5 mm-H2O
   Operating Voltage    12V DC
   Power    6 W
   Current    0.4 A
   Wall Adapter Input    100 to 240V AC
   Operating Humidity    35 to 85% RH
   Operating Temperature    0 to 158°F

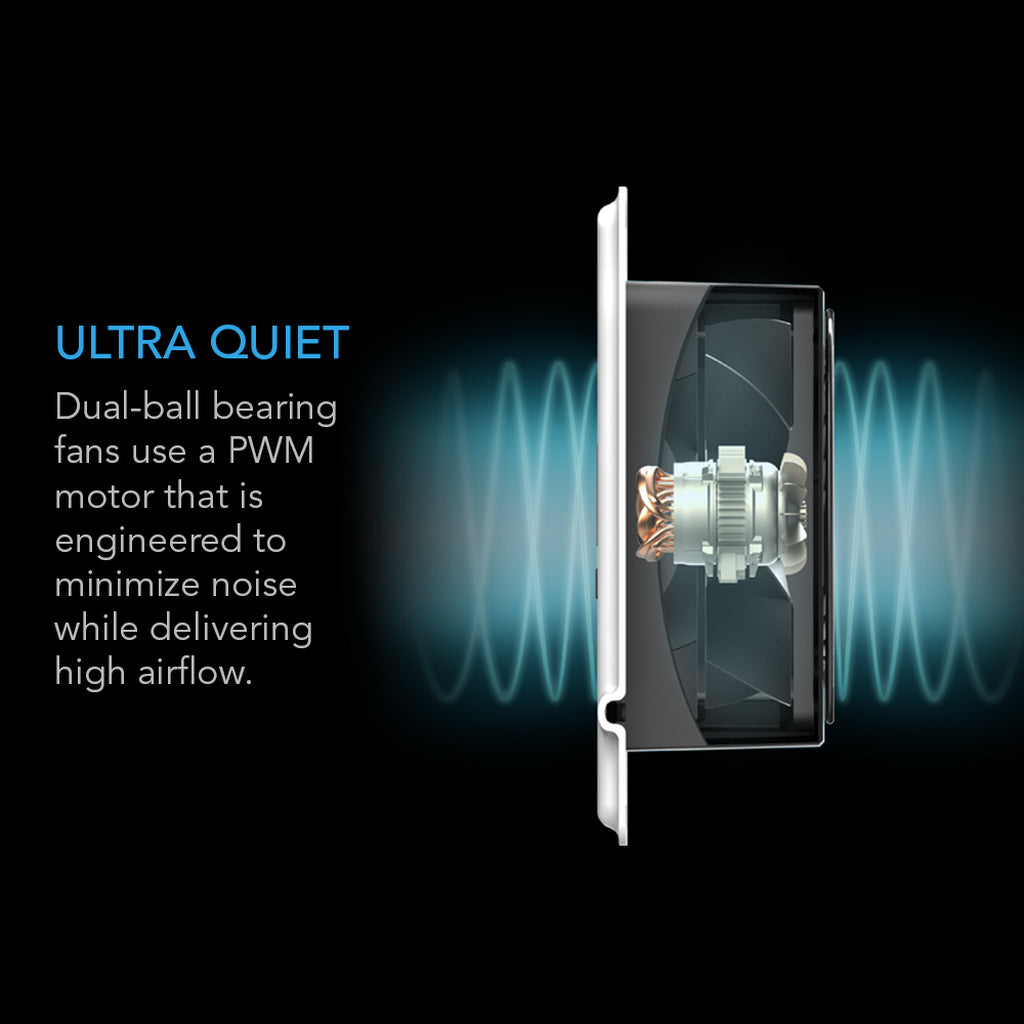

   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
