Delavan Oil Nozzle 3.25GPH 80B

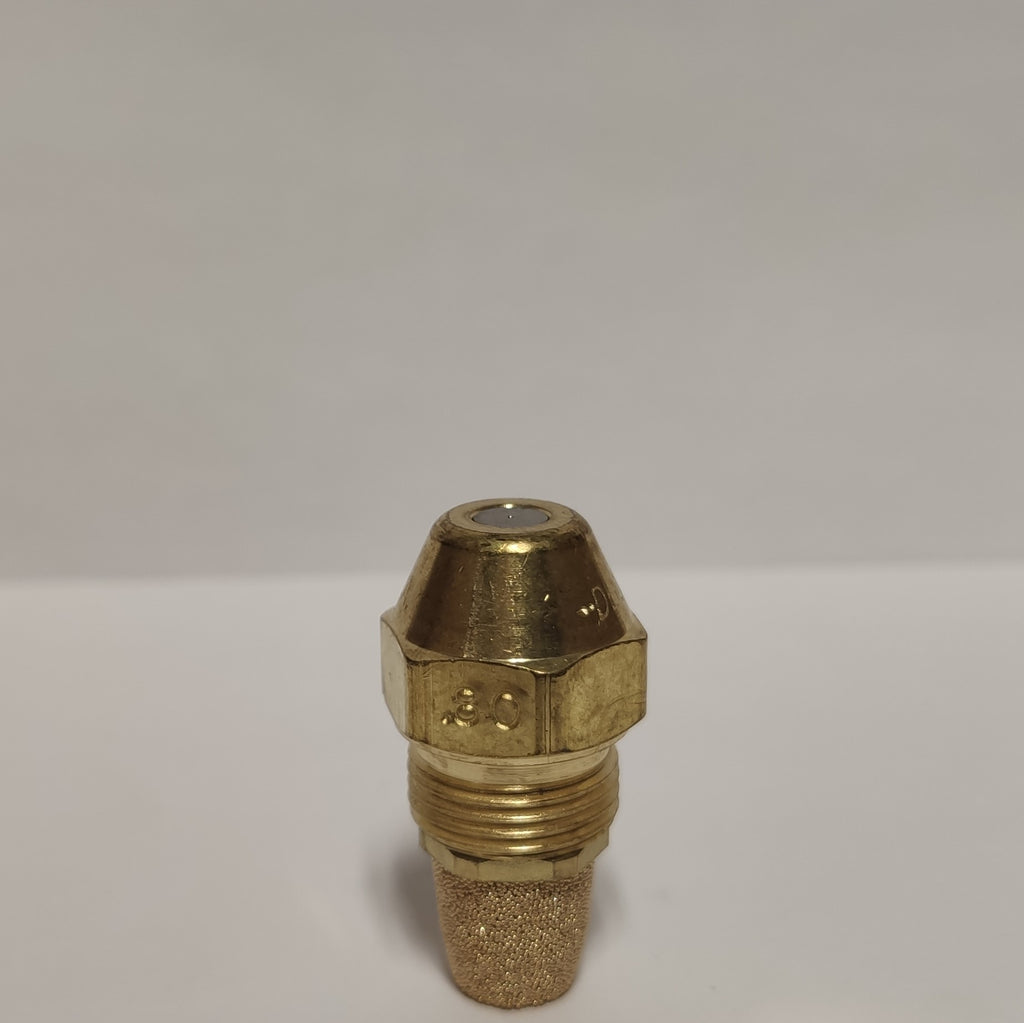

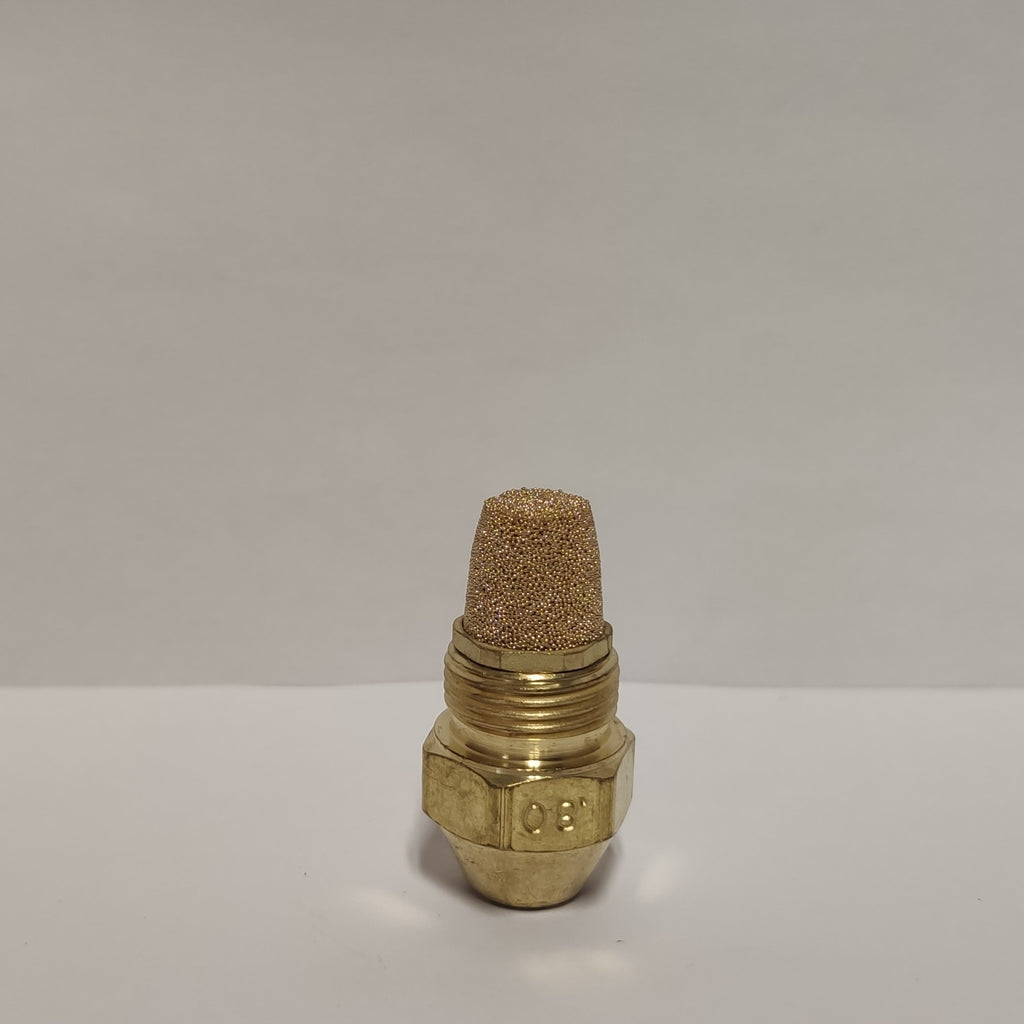

An oil-burner nozzle made by Delavan, the nozzle is a 3.25 Gallon per hour with an 80-degree angle and b spray pattern. Made in the United States. ( See manufacture information here )


Buy 12 nozzles & get $20.00 Off per order for a limited time.

Details

  • Size: 3.25 GPH
  • Angle: 80 °
  • Spray Pattern: B (HOLLOW-CONE)
  • Spray Pattern Details: SOLID-CONE Type B-nozzles produce a spray that distributes droplets fairly uniformly throughout the complete pattern. The spray pattern becomes progressively more hollow at higher flow rates, particularly above 8.00 GPH. Provides smooth ignition and efficient combustion, particularly in larger burners.
